***Read chapter 1 of your operators manual before undertaking any work in the area of the linear drives equipment.***
When in doubt please contact Hegla service before taking action (404) 763-9700
The journal must be replaced if it is broken or bent. For example if the cutting head strikes the edge of a sheet. When this happens, to avoid having to change the entire cutting tool, the journal is given a predetermined breaking point. A strong impact may nevertheless result in damage to the cutting tool. in this case, the entire cutting too must be replaced.

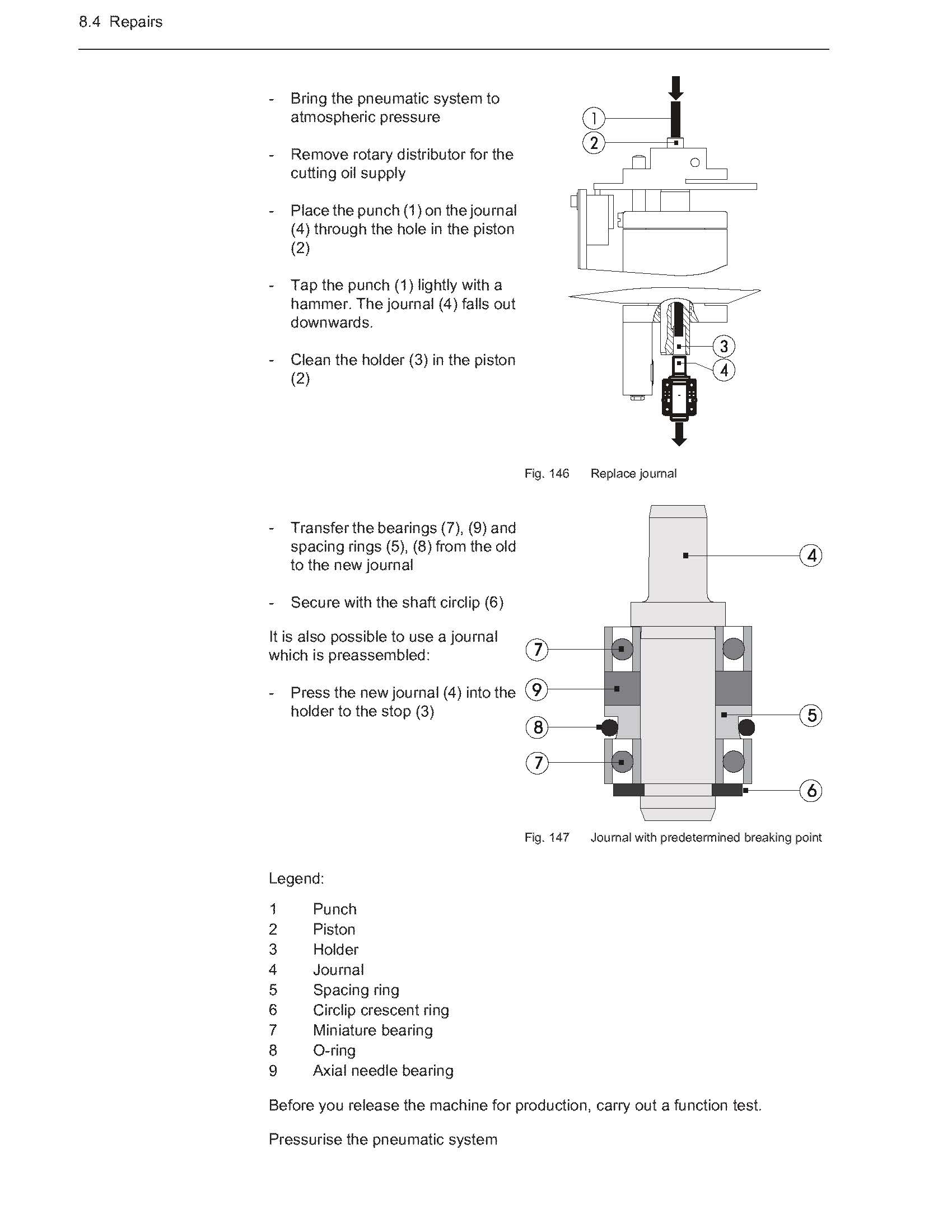

The steps below will show you how to replace the journal:
