***Read chapter 1 of your operators manual before undertaking any work in the area of the linear drives equipment.***
When in doubt please contact Hegla service before taking action (404) 763-9700
Rapidline Lubrication & Maintenance Plan
These lubricating instructions are intended to assist the operator to lubricate the ballscrews of the used linear guideways.
Caution: An excessive quantity of grease will destroy the linear bearings!
For more information about the maintenance of the guide rails and the recommended lubricants see chapter 8 of the Operating Manual.

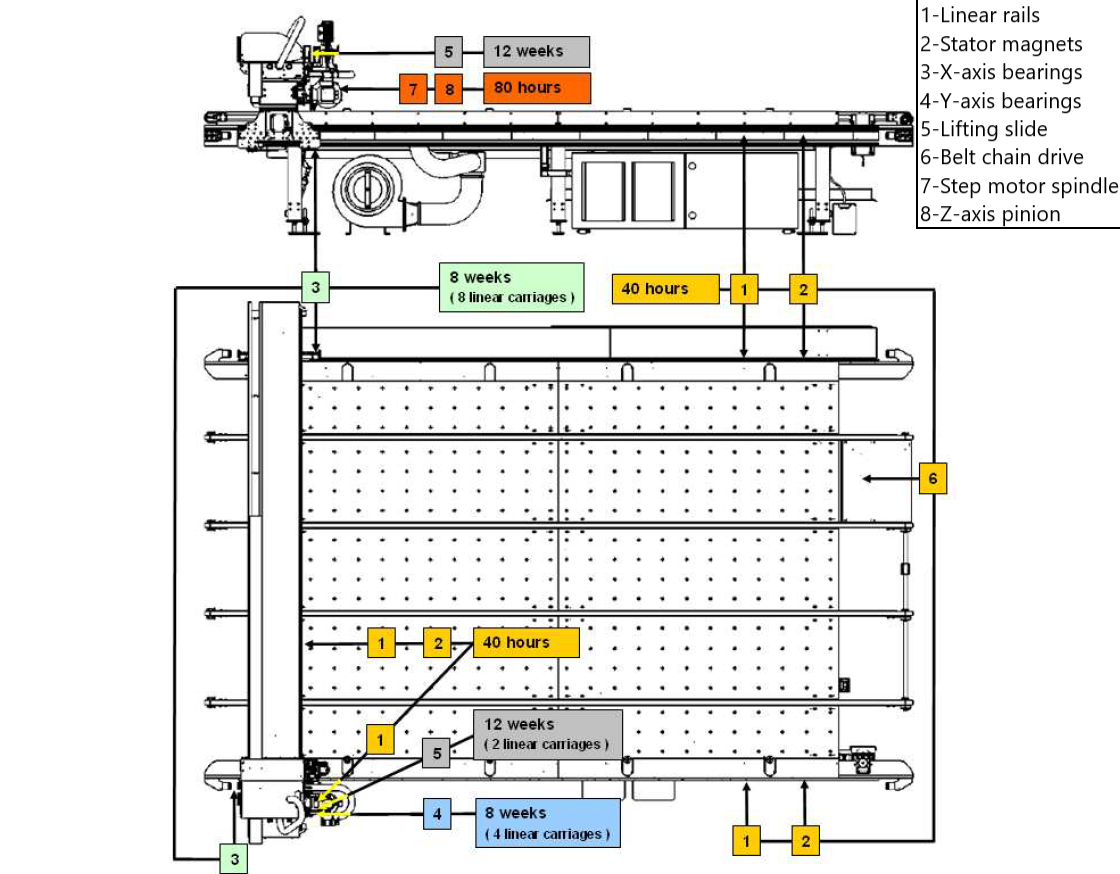

Cleaning and lubrication works on the Rapidline
Maintenance after 40 hours
Lubricating after 8 weeks
Lubricating after 8 weeks
Lubricating after 12 weeks
Lubricating the belts-drive chain :
These lubricating instructions are intended to assist the operator to lubricate the drive chain of the belts.
For more information about the maintenance of the chain and the recommended lubricants see chapter 8 of the Operating Manual.
Lubricating after 40 hours
Lubricating the grinding device :
These lubricating instructions are intended to assist the operator to lubricate the lift (guide shaft) and the rotary drive of the grinding device.
For more information about the maintenance of the chain and the recommended lubricants see chapter 8 of the Operating Manual.
Lubricating after 80 hours
