QUALITY - How to install/remove stroke restrictor in the cutting head
Last updated: Aug 27, 2025
525
views

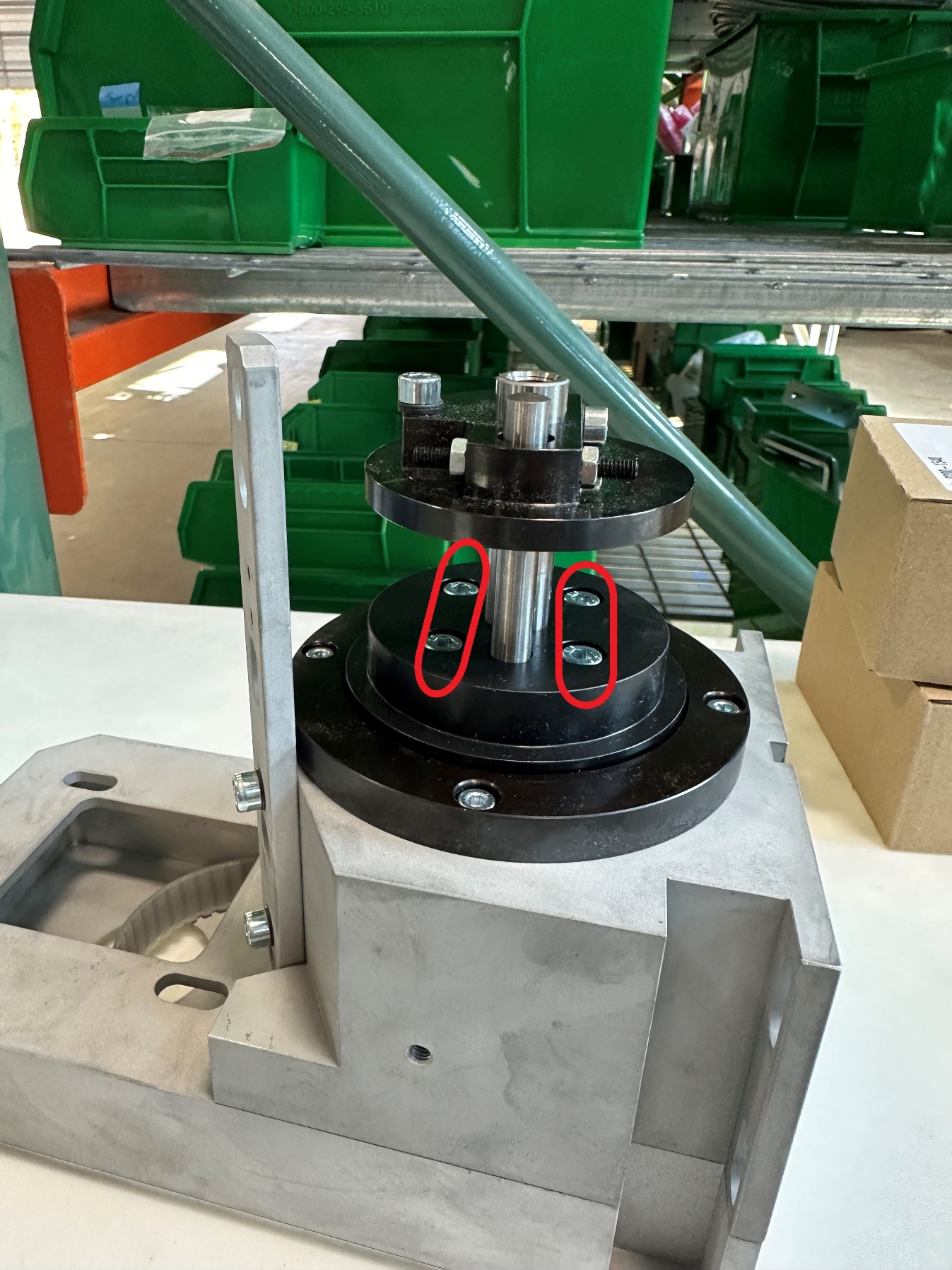

1) Remove the four bolts holding the shaft in place.

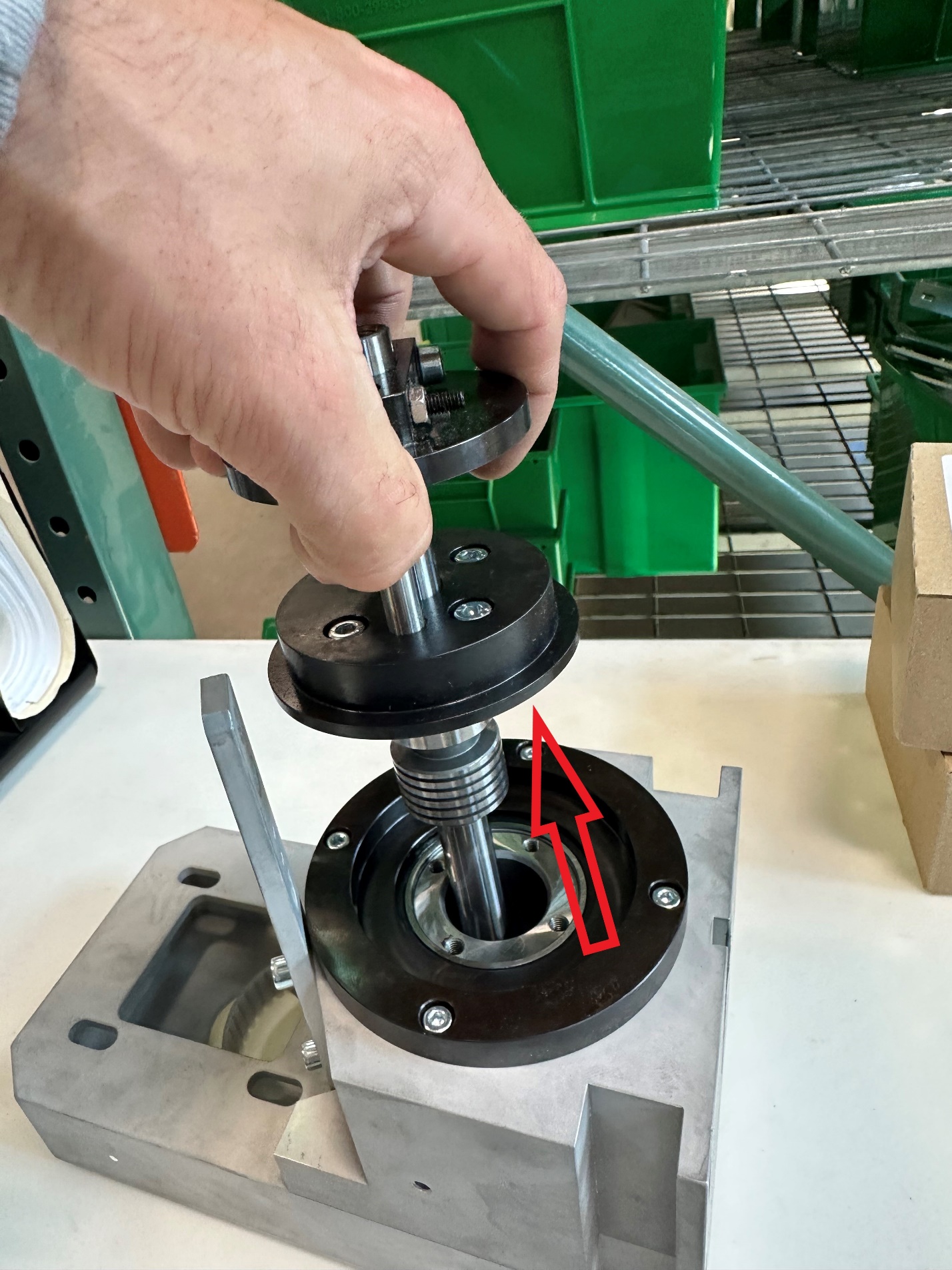

2) Pull the shaft out of its housing (this requires some force sometimes).

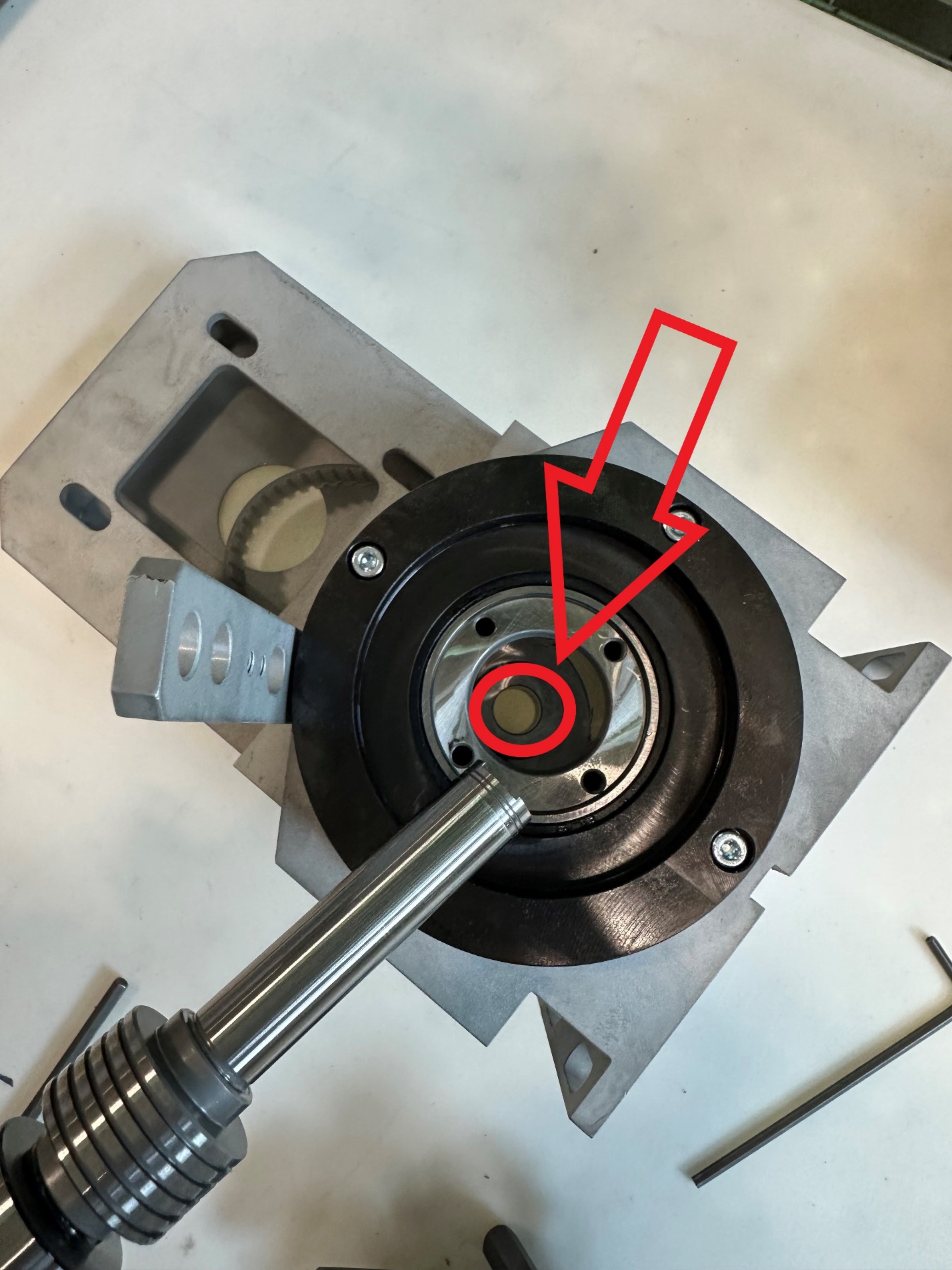

3) Insert the stroke restrictor and reassemble the cutting head.
